PTO Shaft for Post Hole Digger

The power take off is used to transmit power from a tractor or other source of power to an implement.
The two speeds most commonly used with tractor PTO shafts is 540 and 1000 rpm and the PTO shafts can come in different sizes and lengths.

Key words:

PTO shaft

Classification:

PTO shaft

Product consultation telephone:

0576-86923665

Get Quote

Product Details

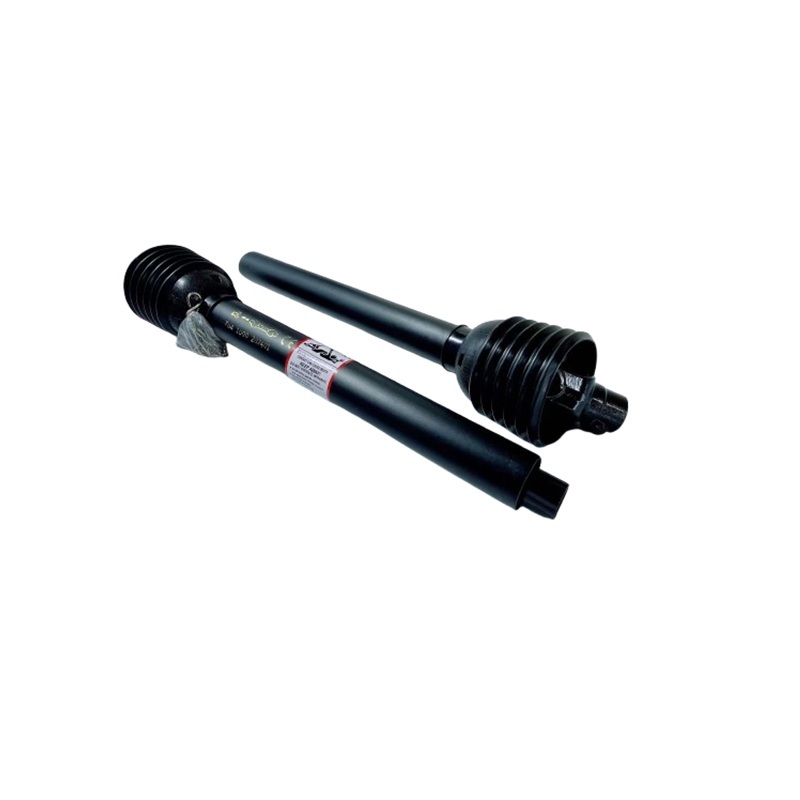

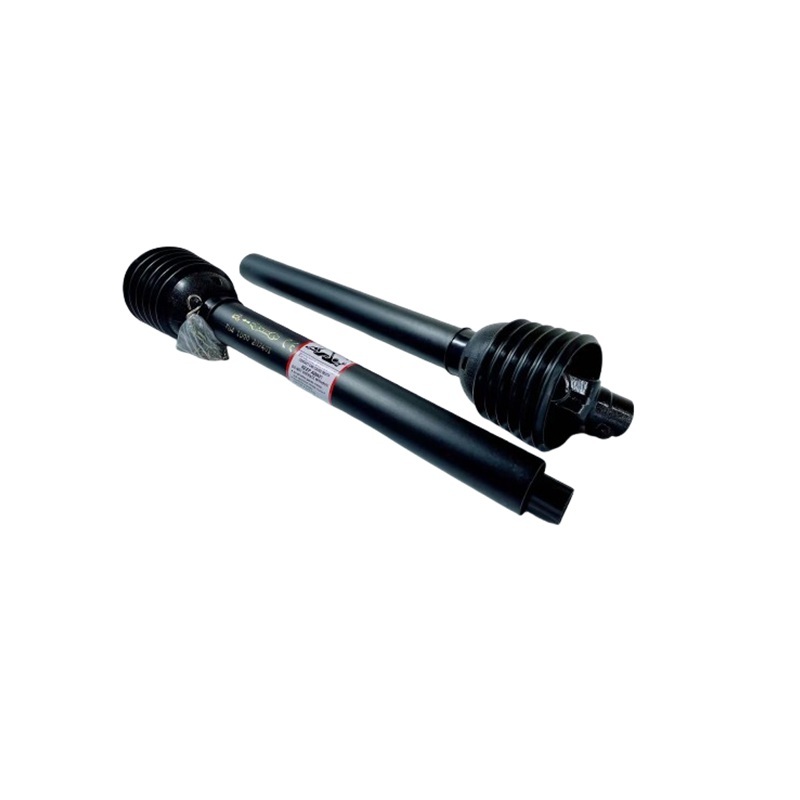

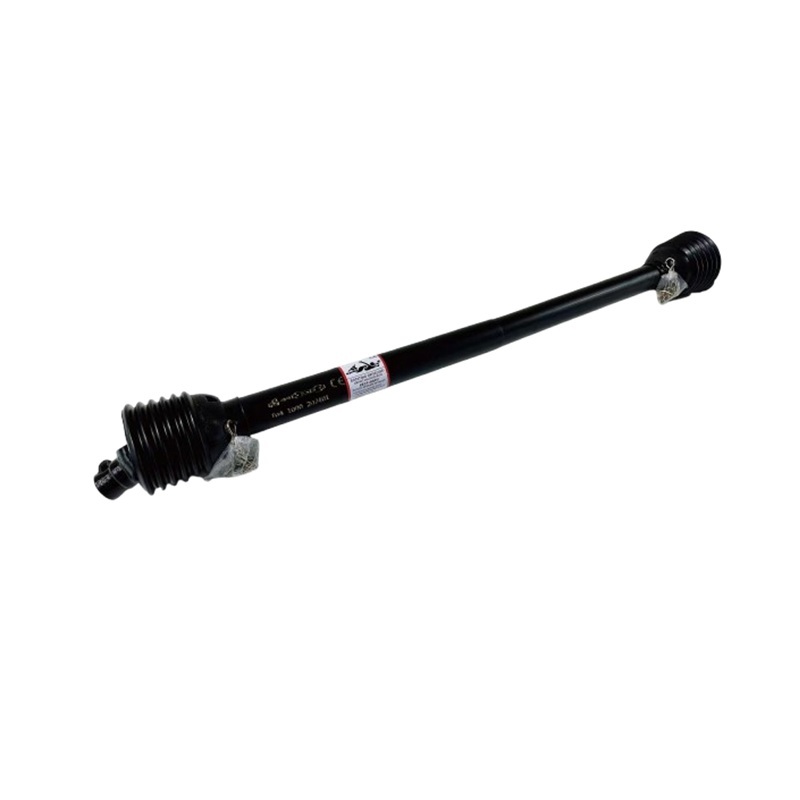

PTO Shaft for Post Hole Digger

Minghua Gear made PTO-driven shafts for post hole diggers are essential components that transfer mechanical power from the tractor's PTO (Power Take-Off) to the auger of the post hole digger. The shaft converts the tractor’s engine power into rotational force, which drives the auger to drill into the ground.

Types of PTO Shafts for Post Hole Diggers

540 RPM PTO Shafts
- Common on standard post hole diggers for use with tractors that have a 540 RPM PTO output. Suitable for general-purpose digging, such as for fence posts and small tree planting.
1000 RPM PTO Shafts
- Used in more heavy-duty post hole diggers that require more power, typically for tractors equipped with a 1000 RPM PTO system. These are ideal for deep or larger-diameter holes or working in tougher soil conditions.

PTO Shaft (Telescoping Shaft)
- The PTO shaft consists of two telescoping tubes (inner and outer), allowing it to adjust its length as the tractor and the post hole digger move up and down. This feature accommodates various working positions and ground contours, ensuring smooth power transmission even when angles shift.

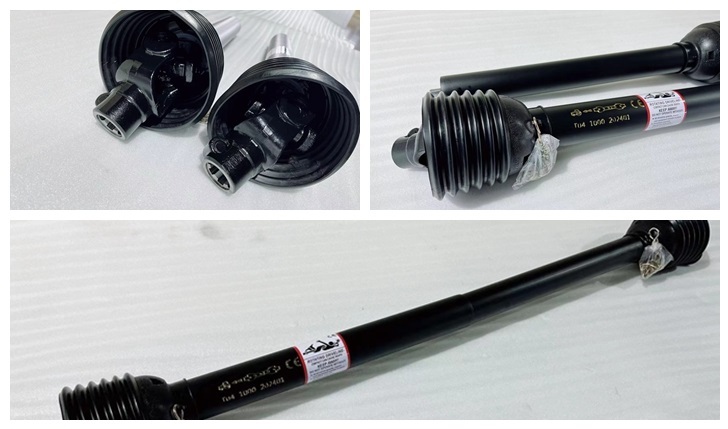

Universal Joints (U-Joints)
- Located at both ends of the PTO shaft, the universal joints allow the shaft to rotate at varying angles between the tractor and the post hole digger. This flexibility is crucial as it ensures continuous power delivery, even when the shaft is not perfectly aligned.
Yokes
- Yokes are used to connect the ends of the PTO shaft to both the tractor’s PTO stub and the input shaft of the post hole digger’s gearbox. They hold the U-joints in place and allow for a smooth rotational movement.
Safety Guard
- A protective shield surrounds the PTO shaft to prevent accidental contact with the rotating shaft. It reduces the risk of injury by keeping users away from the moving parts.
Shear Bolt or Slip Clutch
- The shear bolt or slip clutch serves as an overload protection mechanism. If the auger encounters a solid obstruction like a rock or root, the shear bolt will break or the slip clutch will disengage to prevent damage to the gearbox, auger, or PTO shaft.
- Shear Bolt: It’s a simple and economical system where the bolt snaps under excessive load.
- Slip Clutch: A more sophisticated system that temporarily disengages power in the event of overload, re-engaging once the obstruction is cleared.
Spline and Quick Disconnect System
- Most PTO shafts come with a spline connection to the tractor's PTO output, allowing efficient transfer of torque. Many also feature a quick-disconnect coupler for easy attachment and detachment without the need for tools.

Benefits of Using PTO Shafts in Post Hole Diggers

Efficient Power Transfer
- The PTO shaft delivers powerful torque from the tractor to the post hole digger, enabling the auger to drill through various soil types, including clay, sand, and even rocky soil.
Variable Length and Flexibility
- The telescoping design allows the PTO shaft to extend or compress as needed, ensuring smooth operation even when working on uneven terrain or different hole depths.
Safety and Protection
- Safety features like the shear bolt or slip clutch protect both the tractor and post hole digger from potential damage due to sudden load spikes. Additionally, the safety guard reduces the risk of injury.
Versatility
- A PTO-driven post hole digger is versatile and can handle various tasks, from drilling shallow holes for fence posts to deeper holes for tree planting or large construction posts.

Are you looking for more specific details, such as the types of PTO shafts or tips for choosing one?

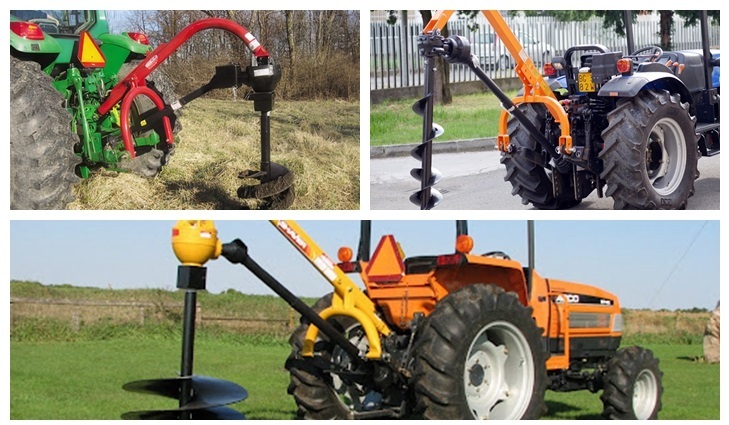

Applications:

Packaging

With inside anti-rust bag then packed in durable plywood crate box.

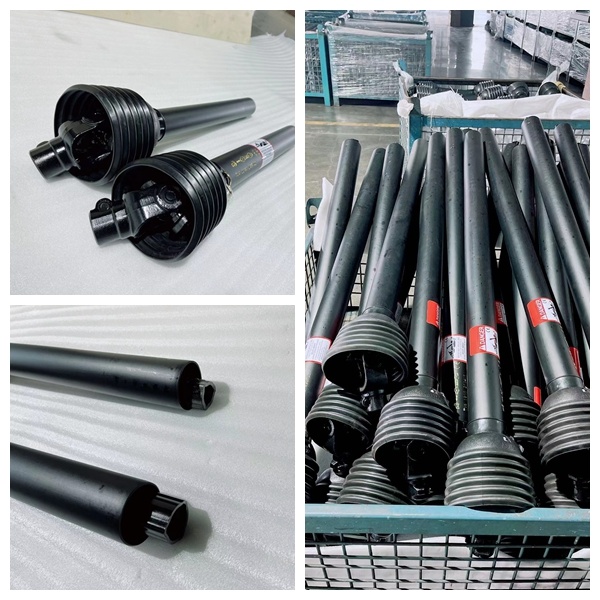

Part description

Production Strength

Full process from forging blank to finished gearbox.
Include forging gear, foundry housing, gear profile process (include hobbing, shaping, shaving, broaching…etc.) assembly, painting, packing.
